Description

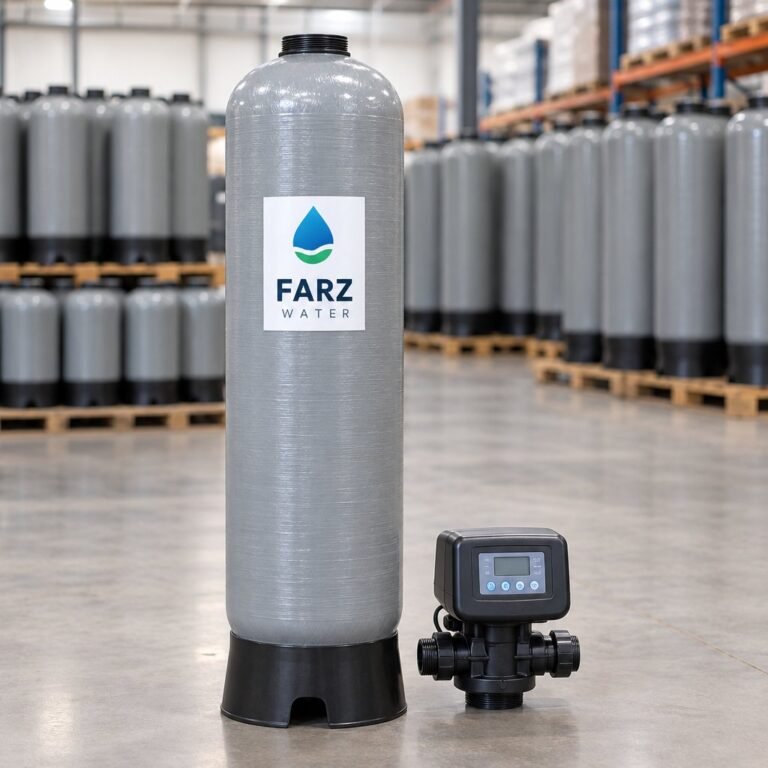

The FRP Pressure Vessel 1354 is a 13-inch by 54-inch fibreglass-reinforced media tank for water treatment. Compared with the 1054, it holds roughly 70% more media, so it can serve higher flow rates and larger homes. It is built with a seamless polyethylene liner wound in glass fibre and resin, making it strong, light and completely rust-free, ideal for the hot and humid conditions in Oman.
Where the FRP Pressure Vessel 1354 is used
- Water softeners for large villas with 5 to 8 bathrooms
- Activated carbon filters for whole-house chlorine and odour removal
- Sand and multimedia filters ahead of RO plants
- Iron removal filters for well water
- Small commercial softeners for cafés, salons and laundries
Construction and benefits
The inner polyethylene liner is the only part in contact with water. Glass fibre filament wound around it gives high burst strength, and a moulded base keeps the vessel upright. FRP vessels do not corrode, need no internal coating and weigh far less than steel. That makes installation easier in villa pump rooms and on rooftops.
Specifications
| Size | 13″ x 54″ (approx. 330 x 1,372 mm) |
| Top opening | 2.5″ – 8NPSM |
| Typical media volume | Approx. 2.5 ft³ (around 70 litres) usable |
| Max working pressure | 150 psi (10.3 bar) |
| Max temperature | Approx. 49 °C |
Service flow guide
As a rough guide, the FRP Pressure Vessel 1354 handles service flows of about 2 to 3.5 m³/h, depending on the media and application. Softeners can run near the upper end, while carbon filters need lower flow for proper contact time. We calculate the right vessel size from your measured water quality and peak demand.
Complete systems and parts
A working filter or softener needs a control valve, riser tube and distributor, gravel underbed where specified, and the media itself. Farz Water supplies complete systems and individual parts. See finished water softeners, filter media in media and chemicals, and other vessel sizes in housings and pressure vessels. For general background, see Wikipedia.
Installation tips
Place the vessel on a level, solid floor in shade. Allow headroom above for the valve and for loading media. Fill gravel and media through a funnel with the riser tube capped, then fit the valve and backwash thoroughly before service.
Frequently asked questions
Can I upgrade from 1054 to 1354? Yes, using the same 2.5-inch valve. You will need more media and possibly a larger brine tank for softeners.
Do you offer media replacement? Yes, we replace resin, carbon and filter media on site.
Order the FRP Pressure Vessel 1354 in Oman
Farz Water stocks FRP vessels and valves in Muscat. Contact us or call / WhatsApp +968 9455 4533.
