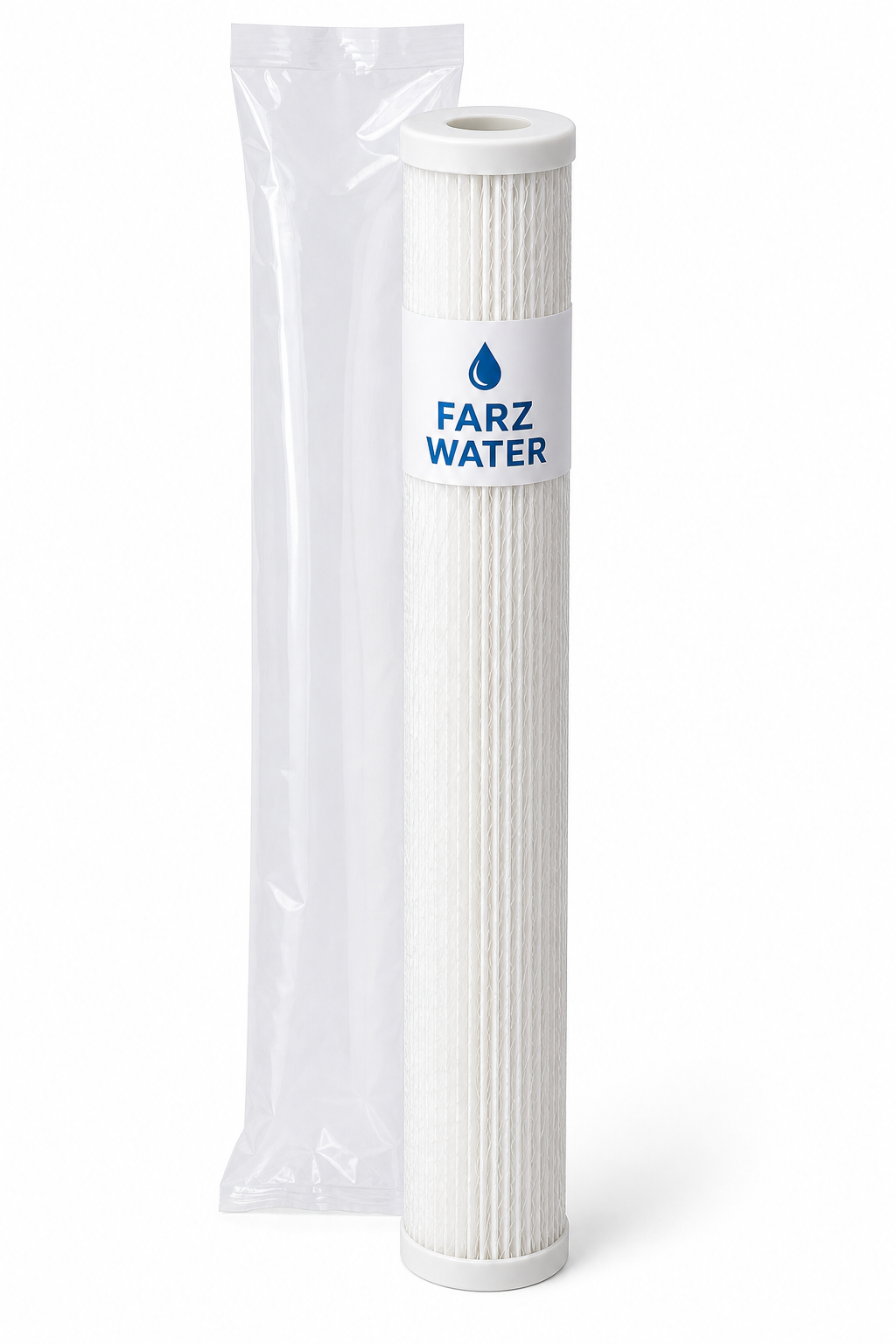

0.2 Micron 30 Inch PES Pleated Membrane Cartridge

Description

0.2 Micron 30 Inch PES Pleated Membrane Cartridge filters are supplied, installed and serviced across Oman by Farz Water. The 0.2 Micron 30 Inch PES Pleated Membrane Cartridge uses a polyethersulfone (PES) pleated membrane in the standard 30-inch format, giving a large effective filtration area and a fine 0.2 micron rating for particle, turbidity and haze reduction in Muscat and the wider Sultanate.

0.2 Micron 30 Inch PES Pleated Membrane Cartridge Overview

A pleated cartridge is built by folding a thin membrane sheet into a concertina pattern around a rigid inner core. That pleating multiplies the surface area packed inside a single 30-inch housing, so the filter holds far more dirt than a comparable wound or melt-blown element and runs at a lower differential pressure.

Polyethersulfone is chosen for this duty because it is naturally hydrophilic, wets out quickly, has low protein and extractable binding, and stands up to a broad pH range and repeated hot-water or steam sanitisation. The result is a consistent 0.2 micron cut point with high flow and long service life.

Key Features of the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge

• Fine 0.2 micron nominal rating for excellent particle and turbidity removal
• Pleated PES membrane with a high effective filtration area for long life
• Standard 30 inch length that drops into common multi-round housings
• Food-grade, low-extractable materials of construction
• Low pressure drop and high flow rate at rated capacity
• Thermally bonded construction with no adhesives or binders
• Suited to Oman’s high-TDS, high-turbidity feed water
• Supplied, installed and serviced by trained Farz Water technicians

Typical Specifications

The 0.2 Micron 30 Inch PES Pleated Membrane Cartridge is normally supplied to the following configuration.

• Micron rating: 0.2 micron
• Nominal length: 30 inch (approx. 762 mm)
• Filter media: pleated polyethersulfone (PES) membrane
• Core, cage and end caps: polypropylene
• End cap styles: DOE, 222 and 226 with flat or fin, subject to availability
• O-ring options: silicone, EPDM, Viton or Buna-N
• Recommended change-out: at approximately 2.4 bar differential pressure

Specifications vary between manufacturers and batches. Please confirm the exact configuration you need with our team before ordering so the cartridge matches your housing and duty.

Applications Across Oman

This cartridge is widely used for pre-filtration ahead of reverse osmosis membranes, final polishing on bottled and packaged water lines, clarification duties in beverage and dairy production, rinse-water filtration in electronics and plating, and point-of-entry protection for villas, offices, restaurants, clinics and laboratories.

Because groundwater and tanker-supplied water in the Sultanate often carries sand, silt and scale-forming hardness, a fine pleated membrane stage protects the equipment downstream and reduces how often more expensive membranes and resins have to be replaced.

How to Install the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge

Isolate the housing, depressurise it and drain it before opening. Remove the spent element, wipe the sealing surfaces clean, lubricate the O-rings with a food-grade lubricant and seat the new cartridge fully so the knife-edge or fin engages properly.

Refill slowly, vent trapped air and flush the system to drain before returning it to service. Log the starting differential pressure so you can track fouling over time. In most Omani installations a change interval of three to six months is realistic, but heavy sediment loading can shorten that considerably. Public health guidance on safe drinking water is published by the World Health Organization, and product certification standards for filtration components are maintained by NSF International.

Why Buy the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge From Farz Water

Farz Water is a water treatment specialist serving Oman and Muscat under ISO 9001:2015 quality standards. We stock genuine components from vetted manufacturers, and our trained technicians handle supply, installation, commissioning and ongoing servicing.

You can browse related elements in our filter cartridges range, book a free water test to confirm the right micron rating for your feed water, or read more about our team.

Frequently Asked Questions

Will the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge fit my housing? It suits standard 30-inch single and multi-round housings. Tell us your end cap and O-ring type and we will confirm the match.

Can it be sanitised? Yes. PES tolerates hot water and chemical sanitisation within the manufacturer’s stated limits.

How often should it be replaced? Replace on differential pressure rather than on the calendar, typically every three to six months in Oman.

Do you deliver outside Muscat? Yes, we supply customers throughout the Sultanate.

Choosing the Right Micron Rating for Your System

Micron rating decides what the element can hold back. A 5 or 10 micron pleated element is a sediment guard, while a 1 micron element starts to catch fine silt and some cyst-sized particles. At 0.2 micron you are into fine membrane territory, which is why the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge is usually the last barrier before a sensitive process or a bottling head.

Putting a fine element straight onto raw, dirty water is a common and expensive mistake. Stage the train instead: a coarse sediment element first, then a mid-range element, then the fine membrane. Each stage protects the next, the fine element lasts far longer, and the total cost per cubic metre of treated water drops.

If you are unsure what your feed water contains, our team can run a water analysis and recommend the staging that suits your borehole, tanker supply or mains connection.

Maintenance Tips That Extend Cartridge Life

• Fit pressure gauges upstream and downstream so you can read the differential at a glance.
• Record the differential weekly and replace on pressure, not on guesswork.
• Never backwash a pleated membrane element; it is designed for single-pass forward flow only.
• Avoid sudden pressure spikes and water hammer, which can rupture the pleat pack.
• Keep spare elements sealed, dry and out of direct sunlight until they are needed.
• Sanitise the housing whenever you change the element on a potable or process line.

Supply, Delivery and Support Across the Sultanate

We hold fast-moving sizes in stock and can usually deliver in Muscat within one working day, with dispatch to Sohar, Nizwa, Sur, Duqm and Salalah shortly after. Bulk and contract pricing is available for facilities that consume cartridges in volume, and we can set up a scheduled replacement programme so you never run a fouled element.

Every 0.2 Micron 30 Inch PES Pleated Membrane Cartridge we supply is backed by technical support, on-site fitting where required, and advice on the rest of the treatment train, from sediment pre-filters and carbon blocks to RO membranes, UV units and softeners.

To order the 0.2 Micron 30 Inch PES Pleated Membrane Cartridge, request a quotation or arrange installation, contact Farz Water today. Call +968 9763 7786 or visit www.waterfilter.om for a free consultation.
