Description

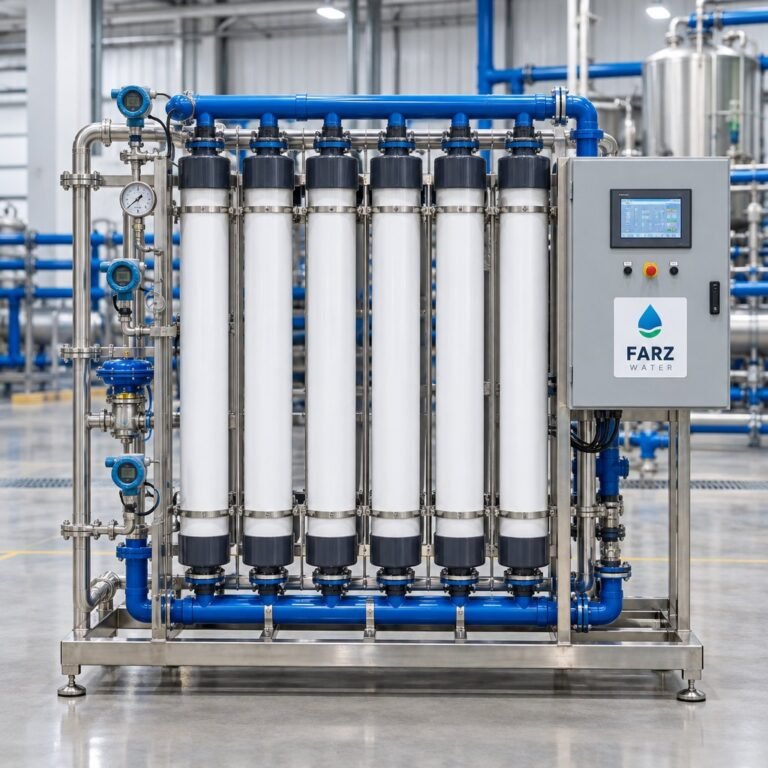

The PVDF UF Membrane Skid is an industrial ultrafiltration system built around vertical pressurised modules with PVDF hollow-fibre membranes. PVDF (polyvinylidene fluoride) is a tough, chemically resistant polymer that tolerates chlorine cleaning and wide pH ranges, giving long membrane life in demanding applications. The skid includes modules, manifolds, valves and instrumentation, ready to connect to feed, backwash and chemical cleaning systems.
Applications
- Pre-treatment for brackish and seawater RO plants
- Surface water and well water with high turbidity
- Tertiary treatment and reuse of municipal or industrial wastewater
- Process water clarification
Why UF before RO?
RO membranes foul quickly on water with suspended solids, colloids and bacteria. A PVDF UF Membrane Skid delivers consistently low SDI (silt density index) feed water, which allows RO to run at higher flux with fewer cleanings. In coastal and industrial sites in Oman, UF pre-treatment often pays back through lower RO maintenance and longer membrane life.
Typical skid features
- Vertical PVDF hollow-fibre UF modules
- Outside-in or inside-out flow (model dependent)
- Automatic backwash, air scour and chemically enhanced backwash
- Pressure, flow and turbidity instrumentation
- Stainless or coated steel frame
Typical specifications
| Membrane material | PVDF hollow fibre |
| Typical pore size | Approx. 0.03 µm |
| Output | Project specific, modular |
| Filtrate SDI | Typically below 3 |
| Cleaning | Backwash, CEB, CIP |
Engineering support
We size the PVDF UF Membrane Skid from your feed water data, required output and recovery, and integrate it with RO and chemical systems. See our ultrafiltration systems and industrial RO plants. For background, see Wikipedia.
Frequently asked questions
How long do PVDF membranes last? Typically 5 to 7 years with proper operation.
Can the skid be expanded? Yes, modular design allows adding modules later.
Why buy the PVDF UF Membrane Skid from Farz Water?
Farz Water is a water treatment supplier based in Muscat, serving homes, businesses and projects across the Sultanate of Oman. When you choose the PVDF UF Membrane Skid from us, you get more than a product in a box. Our team checks your water and site conditions first, so the equipment you buy matches your actual needs instead of a generic catalogue size. We explain the options honestly, including when a simpler or lower-cost solution will do the job.
We stock common spares and consumables in Muscat, so filters, lamps, membranes and fittings are available when you need them. Our technicians install and commission equipment, show you how to operate it, and return for scheduled service if you choose an annual maintenance plan. If anything is not working as expected, you can reach us directly by phone or WhatsApp and speak to someone who knows your system.
Get a quote for a PVDF UF Membrane Skid
Send your project details to Farz Water. Contact us or call / WhatsApp +968 9455 4533.
