Description

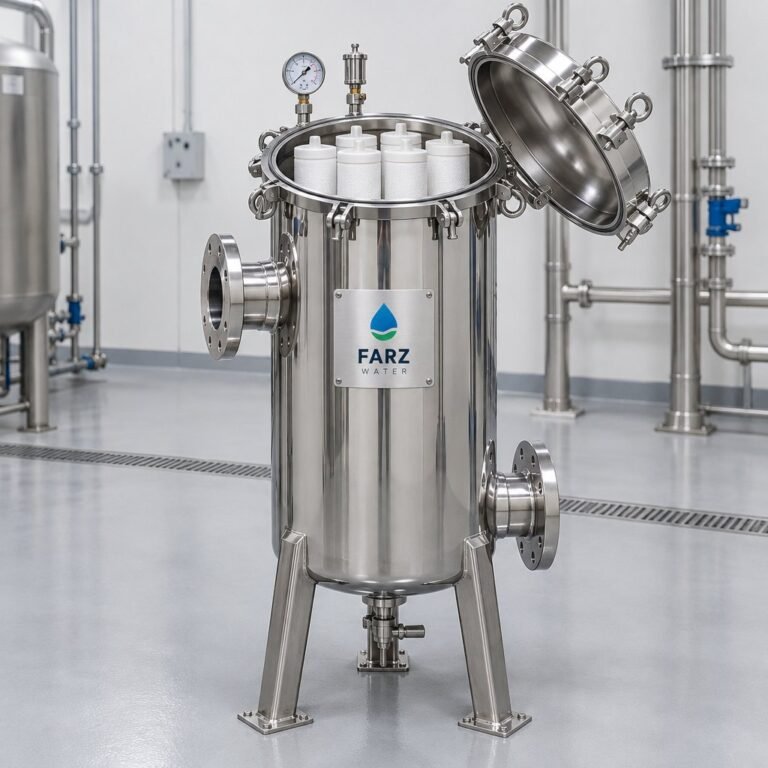

The Stainless Steel Cartridge Housing is an industrial filter vessel that holds one or more long cartridges inside a pressure-rated stainless steel body. It is the standard “cartridge filter” stage before commercial and industrial RO membranes, and a common choice for hotels, hospitals, food plants and process water where plastic housings cannot handle the flow, pressure or temperature.
Farz Water supplies single and multi-round housings in SS304 and SS316L, sized to your flow rate.
Why stainless steel?
- Handles higher pressure than plastic housings
- Resists UV, heat and physical damage in plant rooms and outdoors
- Holds multiple cartridges for high flow rates
- Long service life with minimal maintenance
- SS316L option for food, beverage and higher-chloride water
Key features
- SS304 or SS316L body, polished finish
- Swing-bolt or clamp lid for tool-light cartridge changes
- Takes 1 to 15+ cartridges (10, 20, 30 or 40 inch)
- Pressure gauge port and air vent
- Drain valve at the bottom
- Threaded or flanged inlet and outlet
Typical specifications
| Material | SS304 / SS316L |
| Cartridge lengths | 10 / 20 / 30 / 40 inch |
| Number of rounds | 1 to 15+ (sized to flow) |
| Design pressure | Typically 6–10 bar |
| Connections | 1″ to 4″ threaded or flanged |
We size the Stainless Steel Cartridge Housing so that flow per cartridge stays within the manufacturer’s recommendation, which keeps pressure drop low and cartridge life long.
Applications
- 5-micron cartridge filter before commercial and industrial RO
- Hotel and hospital main water lines
- Food, beverage and bottling plants
- Cooling tower side-stream filtration
- Chemical and process water lines
Pair it with string wound or spun cartridges, or see our commercial and industrial RO plants where it is part of the standard design.
Maintenance
Change cartridges when differential pressure across the housing rises about 0.7–1 bar above clean, or on a fixed schedule. Inspect the lid O-ring at each change and flush the housing through the drain valve. For background on cartridge filtration, see Wikipedia.
Frequently asked questions
Which cartridges fit? Standard 2.5-inch diameter cartridges with double open end (DOE) or code 7 fittings, depending on the housing.
Can you replace an old plastic housing on my RO plant? Yes, we can supply and install a stainless replacement.
Get a quote for a Stainless Steel Cartridge Housing
Share your flow rate and application, and Farz Water will size the right housing. Contact us or call / WhatsApp +968 9455 4533.
